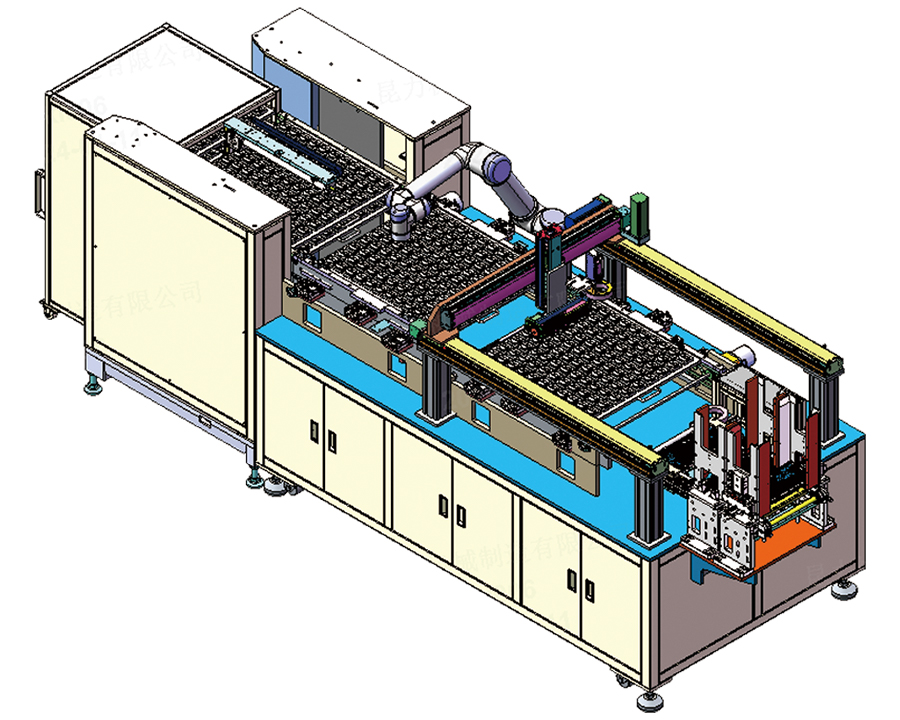

BIB board dividing conveyor

BIB plate splitting conveyor: The BIB feeder truck is manually pushed into and manually pulled out of the workstation. The material receiving position of the workstation needs to have a horizontal limit to facilitate manual operation.

The BIB feeder truck is adapted to four specifications. The BIB feeding equipment uses push-pull rods or transmission sprockets to take out and return BIB boards from the BIB feeder truck. At the same time, the BIB loading equipment can take out and return BIB boards from the BIB board conveying equipment through push-pull rods or transmission sprockets. The BIB loading equipment must have a double-layer structure, so that one layer can take out the old material and the other layer can immediately feed new material (BIB board).

The BIB conveyor equipment has an upper and lower double-layer structure. The vertical position of each layer remains unchanged and can be moved horizontally. It can switch back and forth between the robot and module stations, and the two will move synchronously when switching.
Product description
Serial number Name Parameter
1 Equipment dimensions The length is less than 3000mm, the width is less than 1200mm,
The height is less than 1700mm.
2 Load capacity More than 10kg
3 Load-bearing capacity of robot and tray feeder installation table 300kg
4 BIB feeder truck and BIB board dimensions See Schedule
5 Control System PLC control/industrial computer control
6 Power supply AC220V,50/60Hz:DC24V
7 Noise requirements Below 60db
8 ESD
9 Equipment downtime
10 Scrap rate due to equipment reasons 0
11 OEE
12 Loop beat 20s/pice
