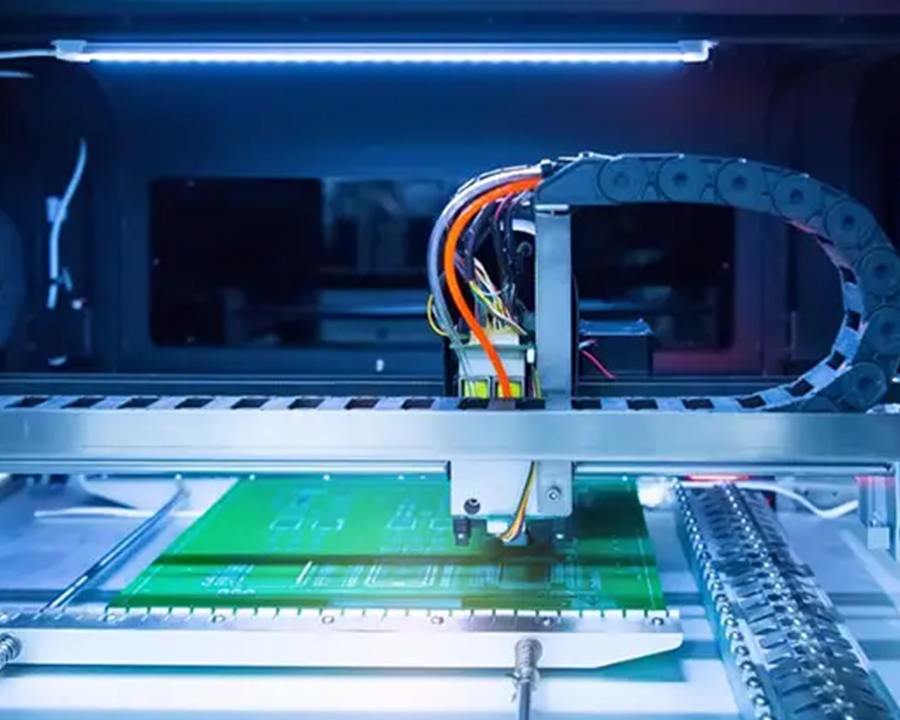

PCBA test sub-board production line

Part of the process of PCBA automated production line:

1. After the production line is powered on, the production line equipment defaults to the automatic operation mode and moves under the control of the control unit to keep the equipment in the preset initial position.
2. When the production line is in ready state, manually put the entire PCBA board into the automatic splitting machine of the production line, press the start button, and the production line starts to run automatically. The splitter divides the entire PCBA board into individual PCBA boards and issues Complete the instruction and wait for the next step.
3. After waiting for the front-end deboarding machine to send the splitting completion signal, the manipulator will grab all the PCBA boards split by the splitter, and then send them to the detection position to wait for the detection operation. The manipulator will return to the grabbing position and wait for the next splitting. board complete signal
4. After the PCBA board reaches the detection position, the detection operation must be carried out. The PCBA board needs to be closely connected to the detection device to start detecting the excellence of the PCBA board. At the same time, the camera performs image processing, detects the components on the PCBA board, determines the quality of the board, and then integrates it with the detection results of the detection device.
5. After the inspection is completed, the robot will take out the inspected PCBA board, and then make a conclusion based on the results of the inspection device and image processing to determine whether the PCBA board is a good quality board, and sort the PCBA boards onto different conveyor belts. Complete this process.
