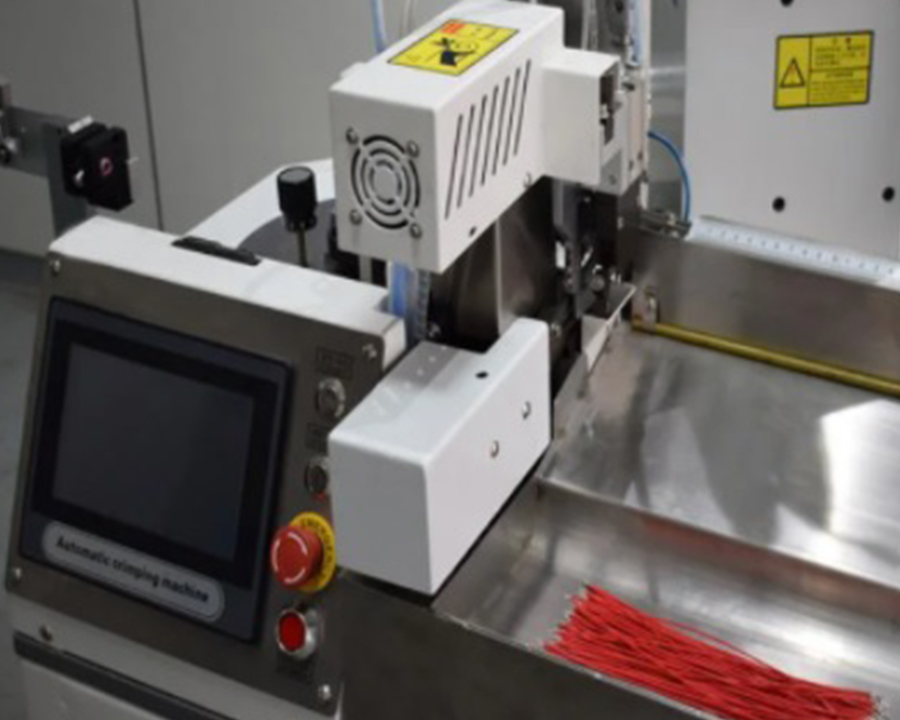

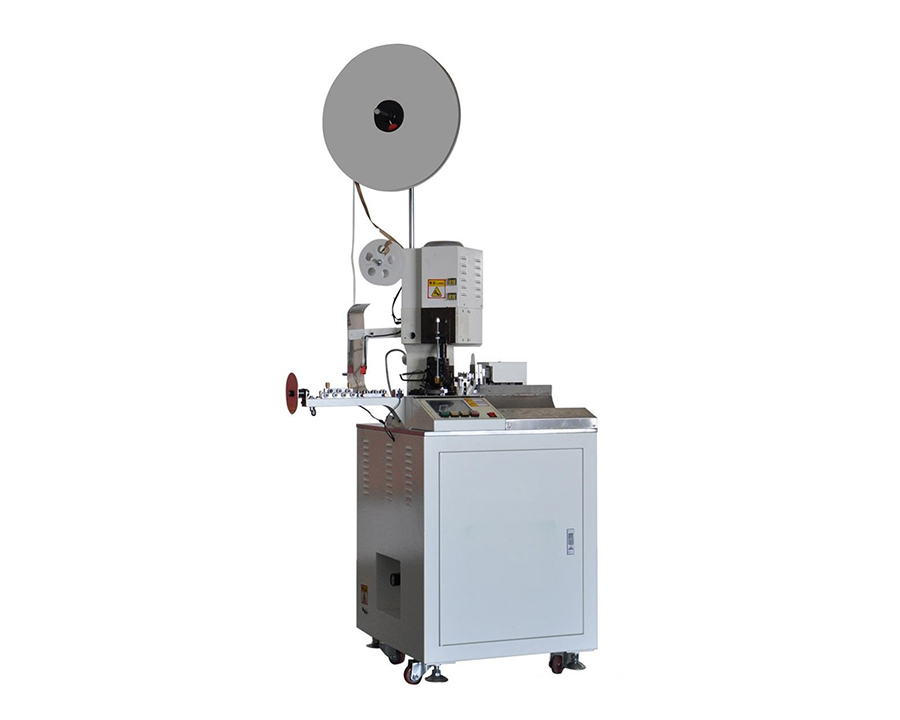

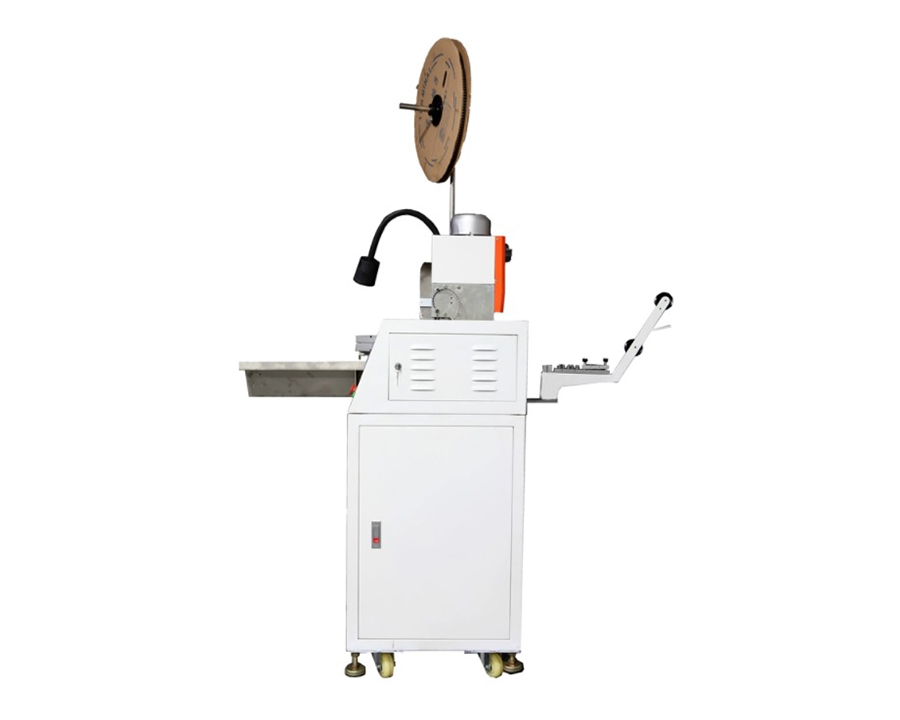

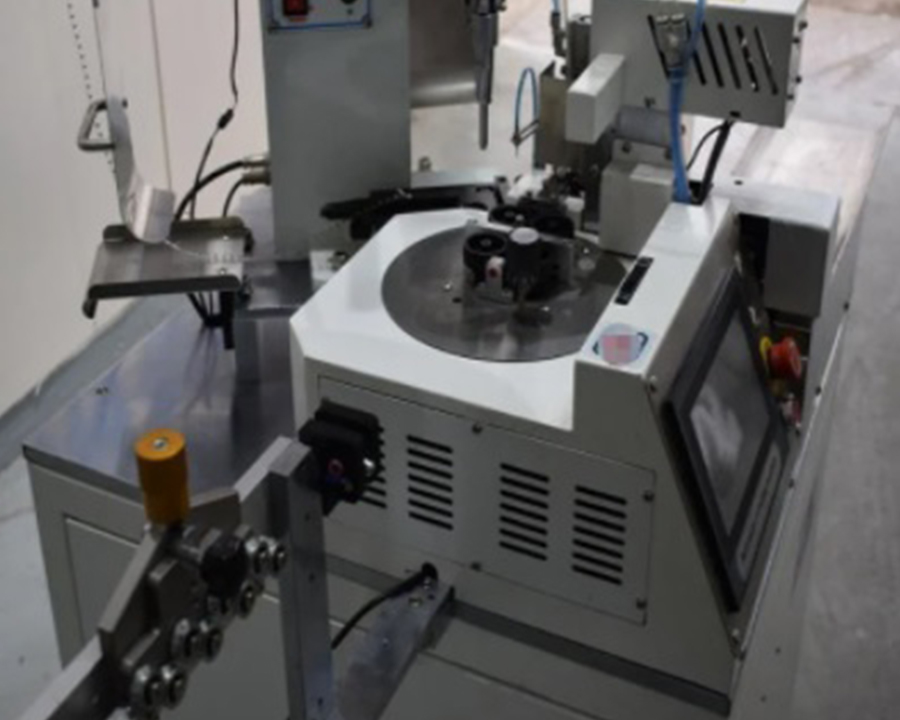

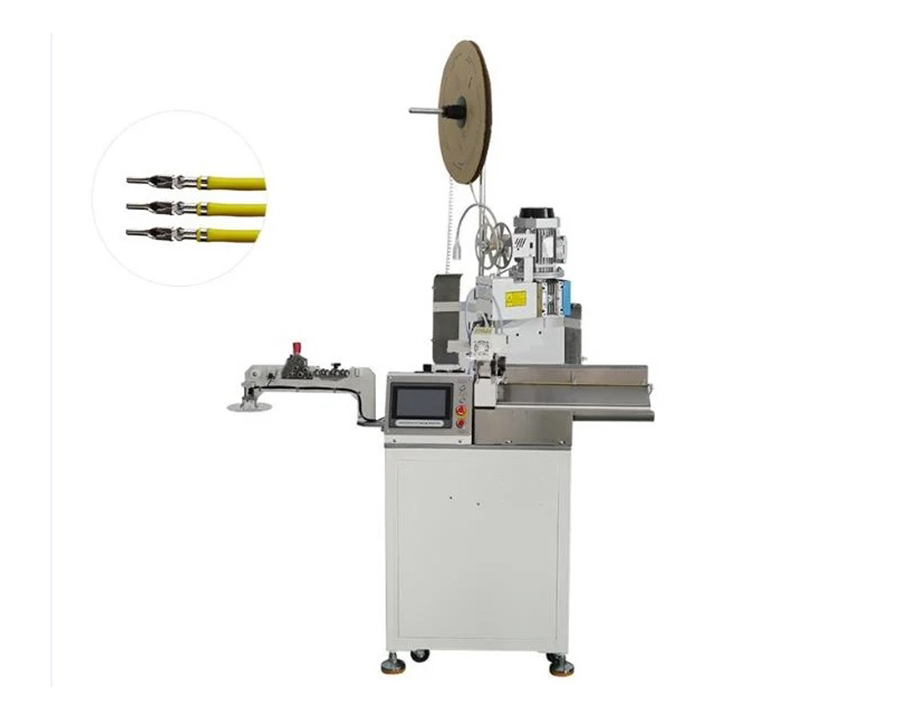

Fully automatic single terminal cutting stripping and crimping machine

The machine adopts PLC digital control system, and can detect the air pressure working condition.
Multi-function choice like wire cutting, full stripping, semi strip and terminal crimping on one end of the wire. Can be automatically located the terminal crimping angle, cutting and stripping length and the blade cutting depth.
1. The terminal crimping machine adopts AWG16#~AWG30 line, feeding, stripping and crimping are finished with one action.
2. Feeding system of the terminal crimping machine: overall technical support, level sent structure, super silenced, exactitude transmission, small clearance, smart action, long service life, stable working performance.
3. PLC control system: computer control without human. Photo graphic user interface and touch screen,It can set all kinds of parameter quickly. Chinese or English display.
4. Adopts the mute electronic clutch terminal crimping machine , Japan OTP (Option)exactitude mould. SKD material to make the blade working more stably have a longer service life.
5. Detect system: Adopt the fiber technical, check each step of work to make product good quality.

Product description

Type

Automatic computer single head terminal crimping machine KL-2000

Power

 AC220V 50 / 60HZ ( single phase ) or 110V ,60HZ

Function

 Wire cutting, both side stripping, single side stripping, single side crimping.

Capacity

4500 strip/h (within 300mm length)

Speed

>3000pcs/hours

Wire Processing range

AWG # 30 - AWG # 14

Wire Length

35mm-8meter

Cutting length

35mm-9999mm.

Cutting fine

Change range:1mm+ below cutting length 0.1%)

stripping length

1mm-30mm

Air pressure

0.5Mpa(5kgf/cm) About 200NL/Min

Detection device

It will alarm downtime when appears lack of abnormal,
insufficient air pressure.

Pressure capacity

19600N(2T)

Twisting length

AWG # 20-AWG # 30 (4mm-8mm)

Machine size

530 * 530 * 1480(mm)

Machine weight

About 150kg
