Wire stripping and terminal crimping machine

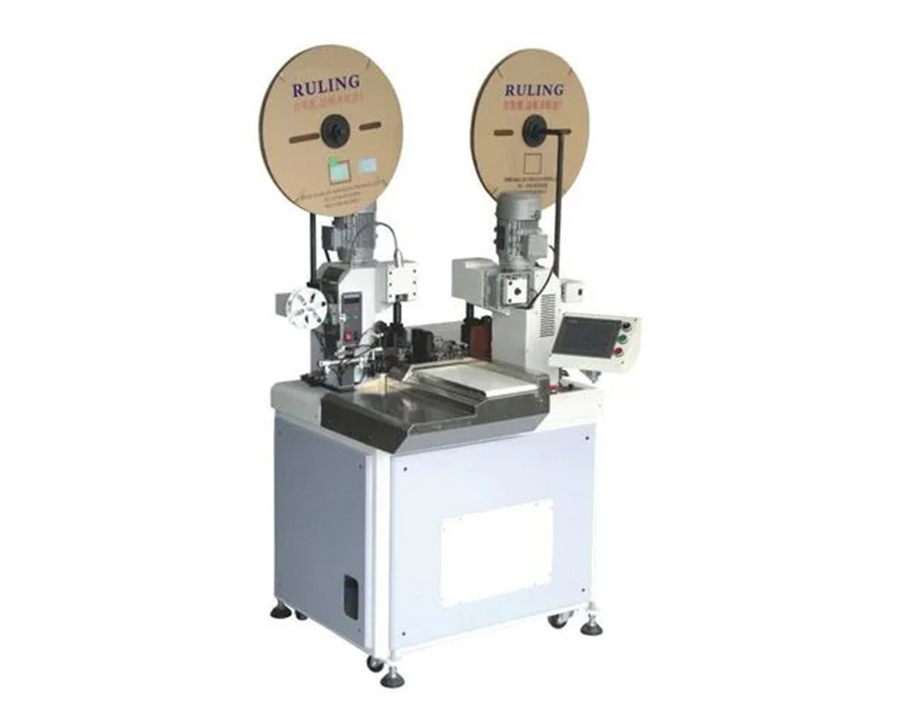

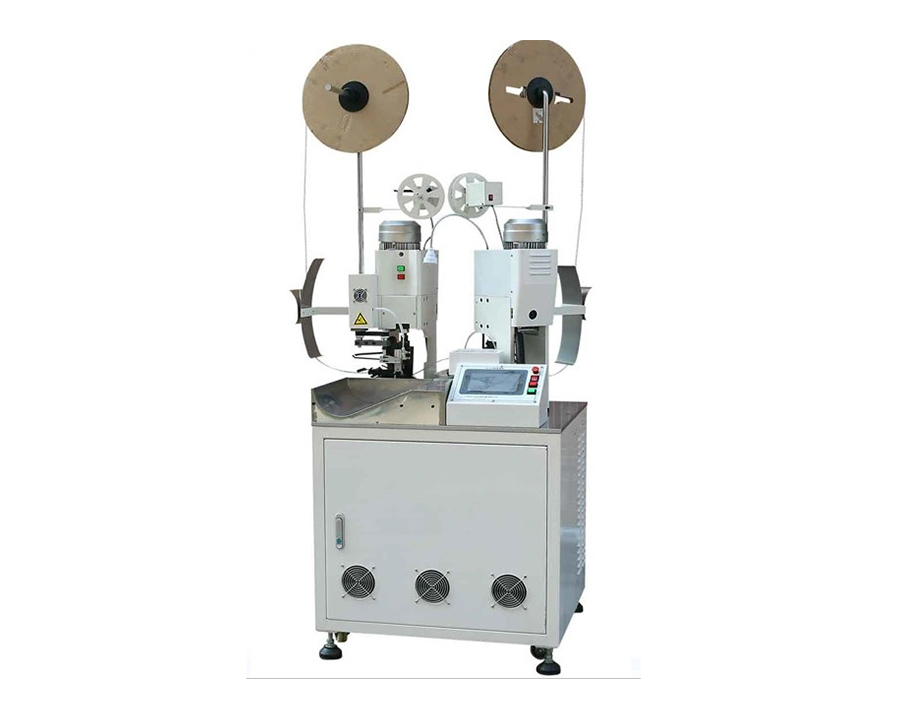

This KL-2400 is a fully automatic swivel arm crimping machine. Touch screen operation, it can cut strip wire, this is versatile fully automatic crimping machine allows high quality and dealing of wires at maximum productivity.

Features:

   Rapid technical adjustments, adjusting the time is short, simple operation.
   Cut the wire, stripping, soldering and other relevant actions will automatically mix adjustment.

Product description

Type

Automatic computer single head terminal crimping machine KL-2400

Power

AC220V 50 / 60HZ ( single phase ) or 110V ,60HZ

Function

Wire cutting, both side stripping, single side stripping, single side crimping

Capacity

4500 pcs/hour (within 300mm length)

Speed

>3000pcs/hours

Wire Processing range

AWG # 30 - AWG # 14( it can customized max. 6.0mm2)

Wire Length

45mm-8meter

Cutting length

45mm-9999mm

Cutting fine

Change range:1mm+ below cutting length 0.1%)

stripping length

0.4mm-10mm

Air pressure

0.5Mpa(5kgf/cm) About 200NL/Min

Detection device

It will alarm downtime when appears lack of abnormal,
insufficient air pressure

Pressure capacity

19600N(2T)

Twisting length

AWG # 20-AWG # 30 (4mm-8mm)

Machine size

530 * 530 * 1480(mm)

Machine weight

About 330kg
