Thin cable 2-end connector crimping machine

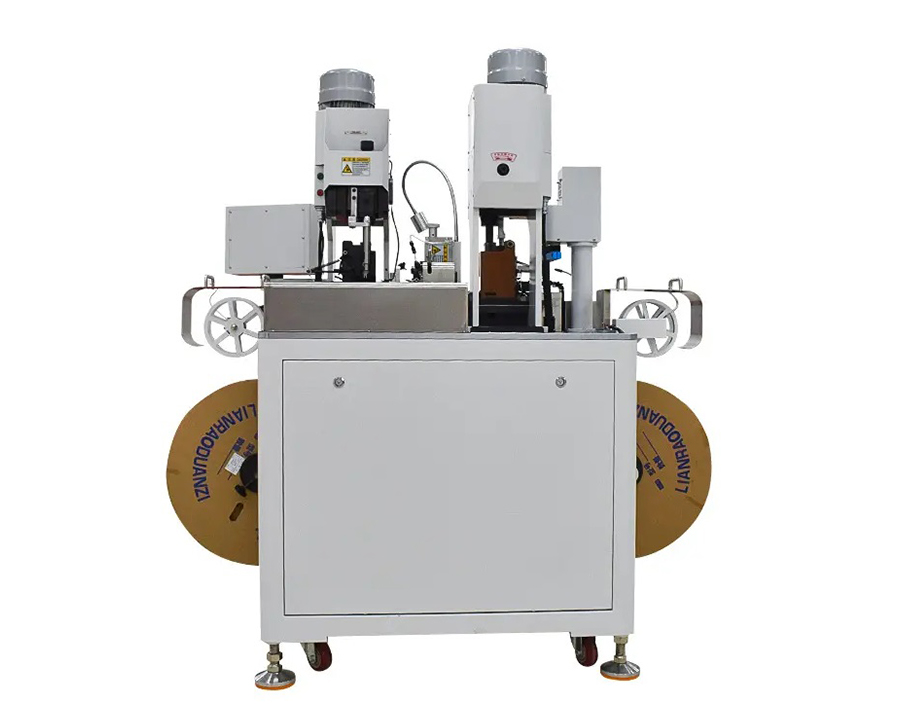

This is a high speed full-servo double-head terminal crimping machine for thin wires. Wire processing range: AWG30#-AWG14#.


Machine function: wire cutting, stripping at both ends, single-end half-stripping, single-wire single-end crimping, and single-wire double-end crimping.

Product description

Model

kL-SF201

Wire cutting length

26mm-9999mm

Cutting tolerance

≥1m, below ±0.02%

Stripping length

0.5mm-35mm (half stripping is required for more than 12mm)

Cutting speed

5500 pcs/h (within 100mm)

Processing efficiency

4000-4800/h (within 30~200mm)

Crimping force

2.0T, other pressures can be customized

Applicable wire

AWG30#-AWG14#

Applicable applicator

OTP horizontal applicator, straight applicator (European applicator can be customized)

Motor

5 sets of Mitsubishi servo motors + 2 sets of stepper motors

Screw

4 sets of TBI screw

Slide rail

7 sets of upper silver rail

Bearing

Sweden SKF

Terminal crimping capacity

2T/3T European precision frequency conversion terminal machine

Voltage

AC220V 50Hz

Air pressure

0.5~0.6MPa (stable, clean, dry)

Rated power

1.8KW

Dimensions

length 1380 * width 750 * 1580 height (mm)

Weight

360Kg
