Silicon carbide powder pressing equipment

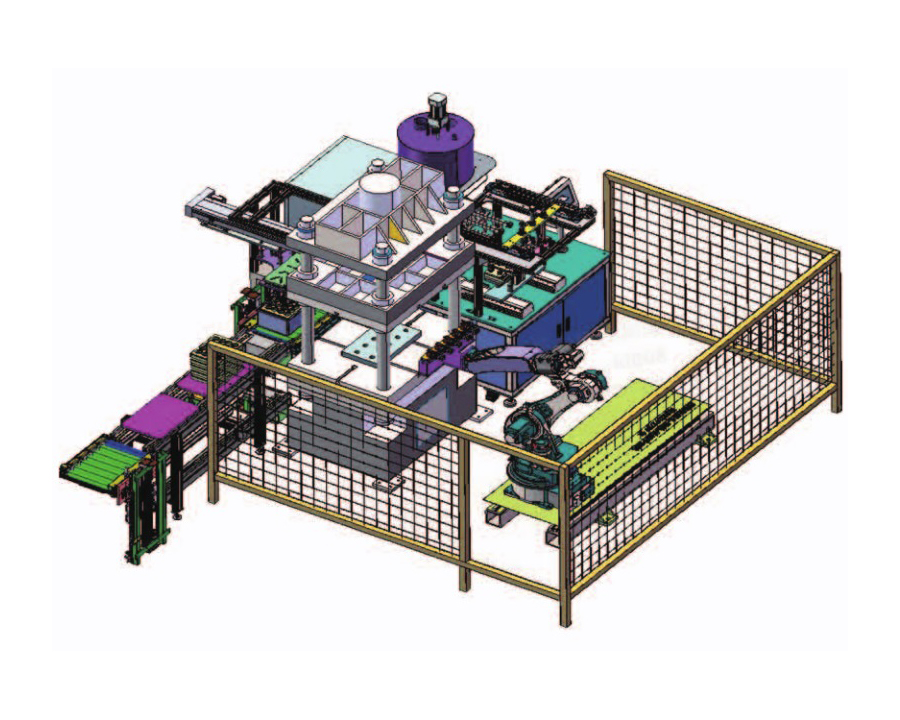

The silicon carbide powder pressing production line is composed of automatic feeding, distributing, weighing, press forming, packaging and other operational mechanisms. After being fed with powder, the equipment automatically performs the functions of weighing, pressing and products outputting according to the preset parameter, with weighing accuracy being less than 2‰.



Equipment parameter:

1. Equipment configuration: applicable to Φ13-Φ55(or as per requirements)

2. Production capacity: 600pcs/h, with pass rate of 99.5%

3. Product accuracy: less than 0.02mm

4. Environmental temperature: -10~70°C

5. Power voltage: 10KW 380VAC 50HZ

6. Air source: 0.5-0.8Mpa

7. Press machine: 40T

8. Dimension: 7m*5m*2m(length*width*height)
